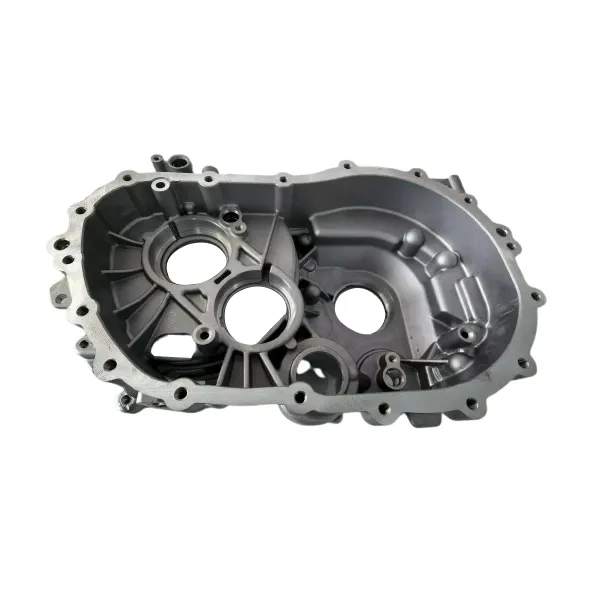

CNC Machined Prototypes
for Automotive Parts

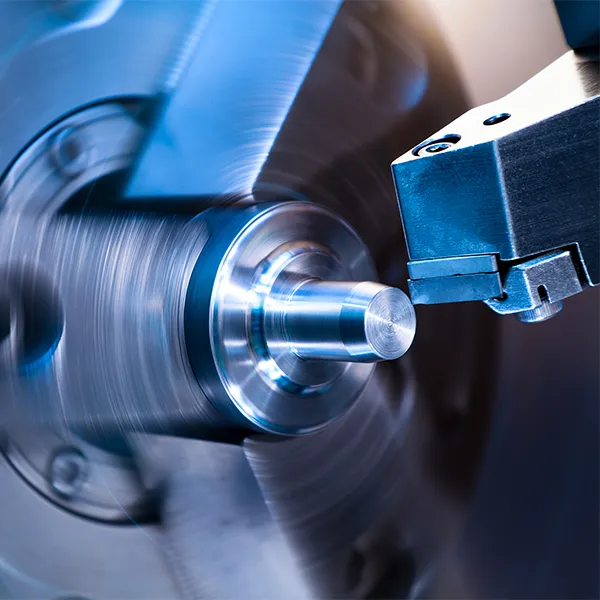

CNC cutting tools are precision tools primarily used in CNC machining. They are specifically designed to machine workpiece materials, removing excess material to manufacture the required parts.WDF is a factory that specializes in making cutting tools, and their designs are quite sophisticated, aiming to enable precise and fast work in various industries. These tools can be mounted on CNC machine tools such as milling machines, lathes, and engraving machines, and their movement and operation are entirely controlled by computer programs.

What types of CNC cutting tools are there?

We have a wide variety of CNC cutting tools, each specifically designed for different tasks and materials. Choosing the right tool for your machining needs is crucial.

End mills: The mainstay of milling operations, used for milling shapes along edges, grooving, and downward milling. They come in various shapes, including square, round-headed, and rounded-corner types.

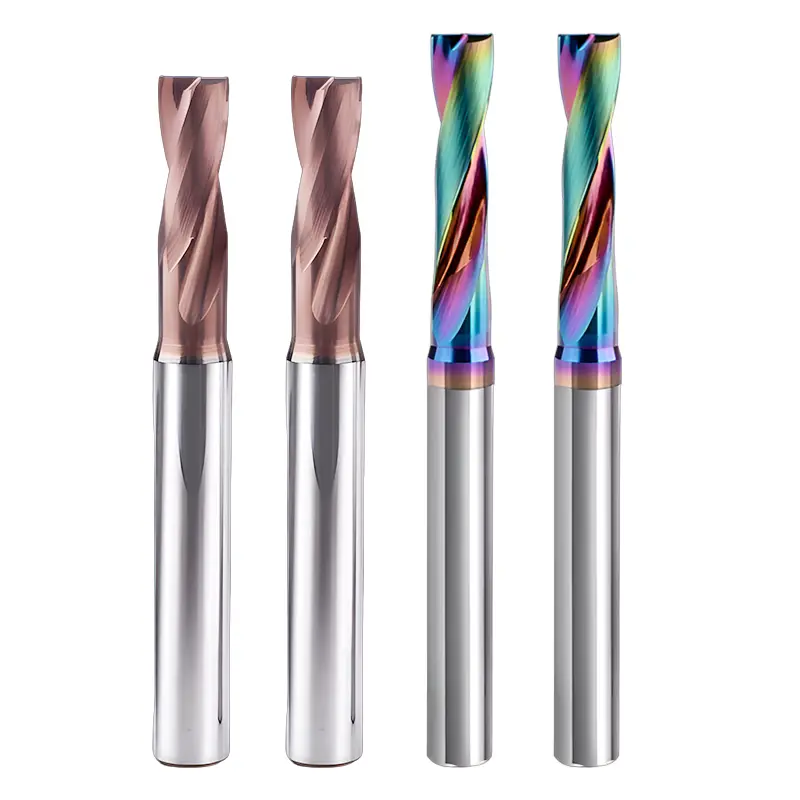

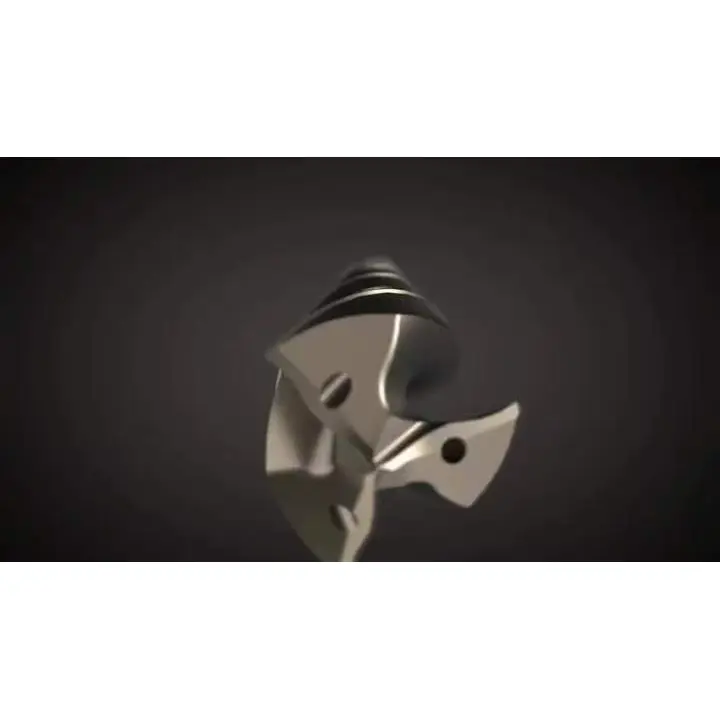

Drills: Used for drilling holes. Twist drills, center drills, and spot drills are common stock.

Lathe tools: Tools used on lathes, for turning end faces, external surfaces, or cutting grooves. The advantage is that the tool head is replaceable, saving money.

Reamers: These tools are specifically used to ream drilled holes to precise dimensions and achieve a very smooth finish.

Taps and dies: These are used for machining threads; taps for internal threads and dies for external threads.

End mills: These are powerful tools specifically designed to cut material sharply downwards from the workpiece end.

What are the benefits of using high-quality CNC cutting tools?

Precision: Dimensional tolerances are precisely controlled, resulting in identical parts with significantly less rework.

Higher speed: Designed specifically for high-speed machining, processing time is drastically reduced, naturally increasing output.

Longer tool life: Durable materials and coatings reduce sharpening time, minimizing tool changes and saving money.

Beautiful surface finish: Sharp and precisely shaped blades produce smooth, glossy surfaces that require minimal further polishing.

Versatile material handling: Whether it's metal, plastic, composite materials, or wood chips, it can handle them all.

More cost-effective overall: Shorter processing time, lower electricity costs.

Boring bar: Used to enlarge and adjust a pre-drilled hole to a very precise size.

In the field of research and development, precise prototyping is crucial for innovation and market success. CNC Machined Prototypes is an excellent method for this. It offers extremely high precision, can process any material, and is very fast. For over two decades, WDF has been a professional manufacturer transforming computer-aided designs into high-quality physical prototypes that withstand rigorous testing. You can buy our products with confidence; we will provide you with excellent service throughout the entire process.

What are the advantages of using CNC machining for prototyping?

Choosing CNC Machined Prototypes offers many benefits, allowing R&D to proceed faster and producing higher-quality products. The main advantages are:

Incredibly precise and consistent: The machine tool works directly from the blueprints, with errors so small they are almost imperceptible. Producing ten or eight pieces is like copying and pasting.

Undemanding and adaptable to various materials: Whether it's metal, plastic, or composite materials, it can handle any material to meet your desired mechanical properties and environmental requirements.

Fast turnaround and reduced labor costs: The machine does most of the work, minimizing human intervention, resulting in rapid prototyping and small-batch production.

Highly cost-effective and saves on mold costs: No molds are needed, allowing for minimal cost to verify the design and prototype, making it extremely economical for small-batch production.

A streamlined process from prototype to mass production: As long as the equipment and parameters remain unchanged, once the prototype is verified, mass production can begin immediately, with a seamless transition.

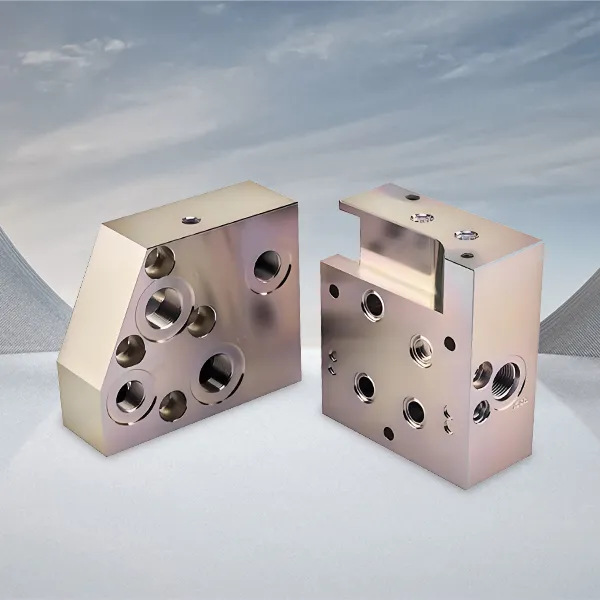

CNC valve blocks are crucial precision components in hydraulic and pneumatic systems. They act as master switches, precisely distributing oil or air to various cylinders, motors, and other components. WDF's valve blocks are CNC machined, achieving extremely high dimensional accuracy and a perfect surface finish.They can withstand the harsh conditions of factory work without malfunctioning. Industries like car manufacturing, aircraft manufacturing, heavy machinery, and factory automation all rely on them to ensure their systems function properly. The materials used for valve blocks vary depending on the situation; aluminum, brass, stainless steel, and high-grade plastics are all acceptable, mainly considering the pressure, temperature, and corrosion resistance. By packing a bunch of valves into a small square, the advantages are obvious: simplified system design, fewer potential leaks, and smoother overall system operation.

What are the core advantages of this product?

Our CNC valve blocks are designed and manufactured for durability, precision, and adaptability to various environments. Key features include:

1. Our products use high-quality materials and can withstand pressures up to 10,000 PSI.

2. We offer a variety of options, including alumina, stainless steel, or coated finishes, providing corrosion resistance even in harsh environments.

3. We can also customize various port sizes to meet your system requirements.

4. This product integrates the functions of multiple valves into a single valve block, saving space and speeding up assembly.

5. CNC-machined internal channels minimize turbulence and pressure loss, ensuring smooth oil/gas flow.

6. Common valves, such as solenoid valves, check valves, and pressure valves, are compatible with CNC valve blocks.

For more information, please feel free to contact us!
